HD COFDM Wireless Video Transmitter Description:
NLOS COFDM wireless video link transmitter (DS-HSA510) is a new design ultra-low latency COFDM digital wireless video transmitter. It is esigned with 3 video ports, H-D-M-I, SDI, and CVBS on the transmitter, which is perfect for analogue or digital cameras.
With 4th generation COFDM, narrow-band, and H.264 encoder technology as its code, KP-HSA510 sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments. The compact design and low consumption make this HD transmitter enable true long range HD video transmission.
Features:
- Compact design, low consumption and ultra low latency. (Standard 300ms, can be customized 100ms end to end latency).
- Supporting 3 video input formats (interfaces): H-D-M-I+SDI+CVBS/BNC
- COFDM modulation for stable audio video transmission
- Strong safety with AES user-defined passwords
- Supporting NLOS (non line of sight) and fast moving environments but stable signals transmission
- Easy operation by digital panel configuration, and LCD display
- Military & industrial grade
COFDM Transmitter Advantages:
- LOS & NLOS (non line of sight) operation in fixed or high speed mobile deployment
- Strong anti-interference
- Strong anti-muitipath fading
Specification:
| Voltage | DC11-14V |
| Current | 2.3A |
| Audio input | AV |
| Video input | H-D-M-I & SDI & CVBS/BNC |
| CVBS interface | For SD analogue video signal input |
| HD interface | For HD digital video signal input, support HD 1080P, 720P, 576, 480 |
| SDI interface | For SDI digital video signal input, support HD 1080P, 720P, 576, 480 |
| Bandwidth | 2/2.5/4/8MHz |
| Frequency | 300MHz-4400MHz (subdivided), stepped in 1MHz; other Frequency can be customized |
| Modulation | COFDM 2K |
| RF power | 5-10W adjustable |
| Encryption | AES user-defined password |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Video coding | H.264 |
| Latency | Standard 300ms, can be customized 100ms end to end latency |
| Parameter setting | User manually setting through LCD display panel |
| Antenna port | N |
| Dimension | 230*150*66mm |
| Weight | 2.88kg |
| Distance | 10~15km LOS, 5~8km NLOS on ground; 200km from UAV to ground |
Optional COFDM Wireless Video Audio Receiver:

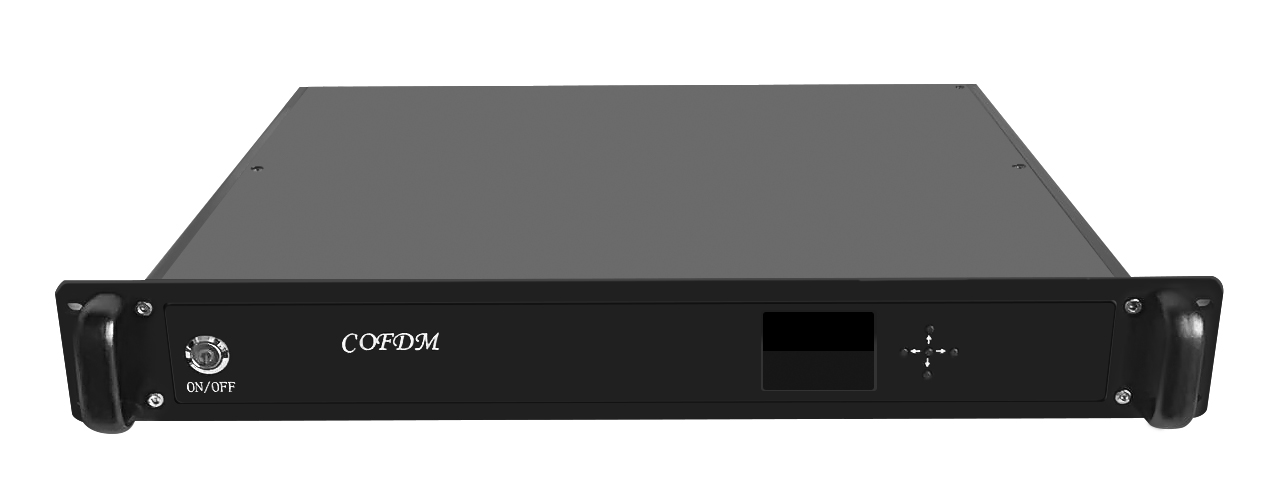

1). Rack mounted Wireless Receiver:

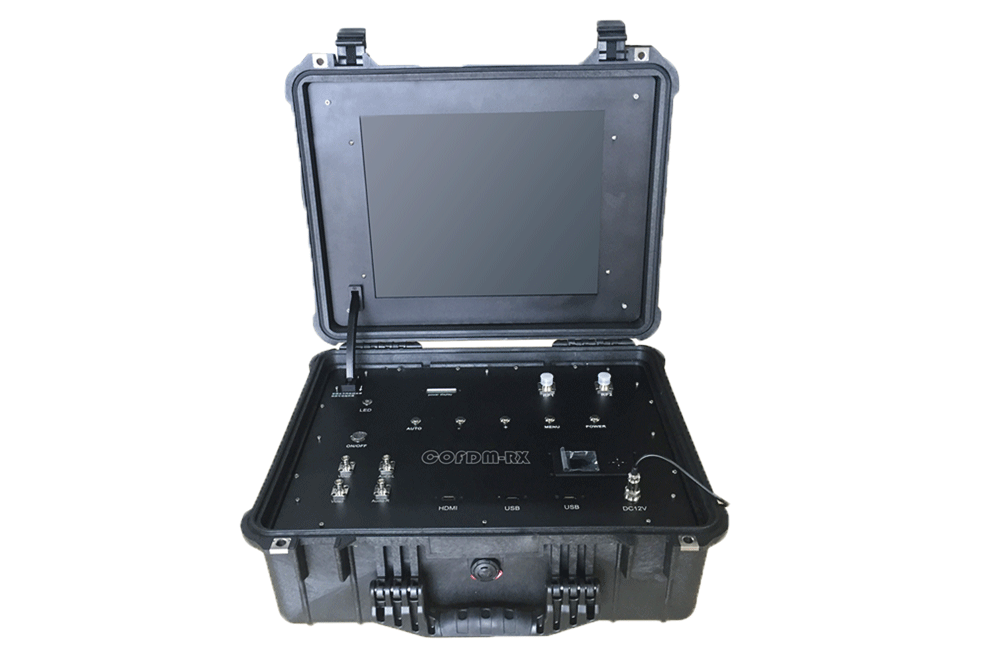

2). Portable Receiver with monitor:
|
|
