Radio Frequency Intercom System 5.8ghz Video Drones with Long Flight Time Point to Point 1080p Video Transmitter
Its advantages small size, light weight that can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.
It's widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.
Features:
* COFDM modulation
* inbuilt with HDMI and data serial port

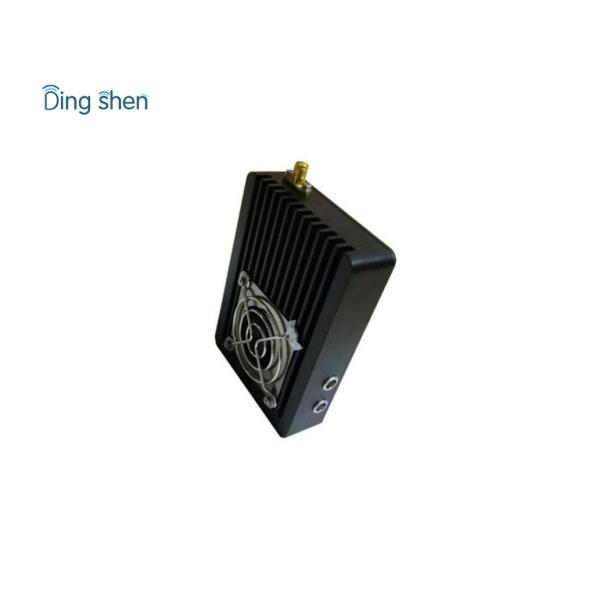

* Heat dissipation with aluminum case;
* Great security by AES user defined encryption
* Ideal for UAV/UGV and hidden mission use
Description:

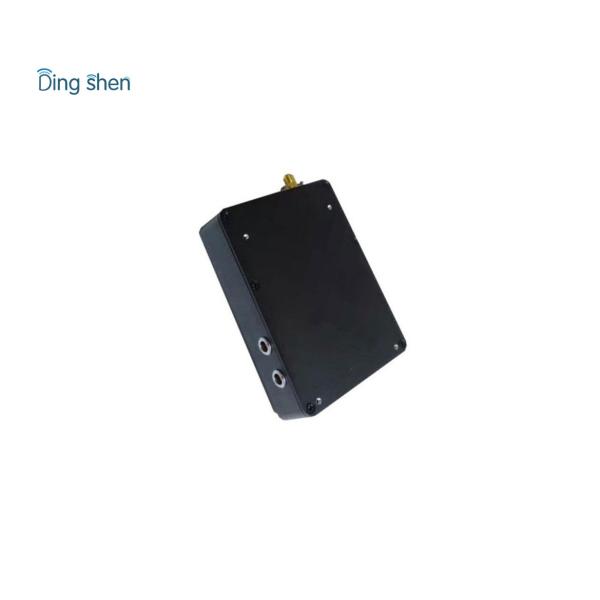

DS-HDT1W is a micro new customized HD COFDM video transmitter,specially designed for UAV,UGV and body-worn use .It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for one-way data control.
.
Transmitter Specification:
| Voltage | DC12V |
| Power supply | DC12V/600mA |
| AV input | HDMI: support HD1080P/1080I,720P,576,480; |
| Data serial port | RS485RS232/TTL ,one-way communication |
| Frequency | 300-1500MHz (optional) |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| RF power | 1Watt(30dBm) |
| Encryption | AES -user defined password |
| Modulation | COFDM,2K,QPSK |
| Constellation | QPSK,16QAM,64QAM |
| Carrier | 2K,8K |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| FEC | 1/2,2/3,3/4,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Video Compression | H.265/H.264/MPEG-4 |
| Resolution | 720P ,1080i/1080P@60fps |
| Parameter control method | User can Set up the related parameters by the control buttons |
| Built-in small LCD | display parameters,but will be shut up in 3 seconds after on. |
| Power switch | ON/OFF simple operation |
| CNR(weighting) | ≥58 dB |
| Sloping field SNR | ≥50 dB |
| RF Interface | SMA |
| Video formats | PAL/NTSC(self-adaption) |
| Low latency | 200ms |
| Working temperature | -20℃～75℃ |
| Dimension | 100*60*16mm |
| Weight | 133g(without battery) |
Receiver specificatations:
| Frequency | 300-900MHz(option) |
| Bandwidth | 2/2.5/4/8MHz (adustable) |
| RF Level Input | -92dBm~-20dBm / -105dBm~-20dBm |
| RF Impedance | 50Ω |
| RF Interface | N female |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Carrier | 2K,8K |
| Video Decoding | ISO/IEC13818-2 MPEG-2MP@ML |
| Aspect Ratio | 4:3, 16:9 |
| Resolution | 1080P; 720P |
| Audio Output | Analog stereo left and right channels |
| Lines of horizontal | 625 or 525 Line |
| Decryption | AES256 bit / ALLTECH Basic scrambling |
| Working Voltage | AC220V / DC12V |
| Temperature | -30~70° |
| Dimension | 430*310*65mm (1U Aluminium alloy box) |
| Weight | 1.5 kg |
