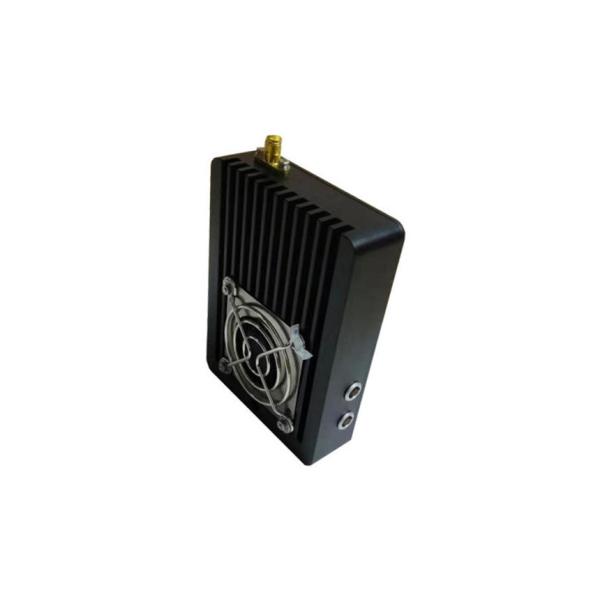

20km LOS UAV Video Transmitter 300-900Mhz For Communication Tactical

Brand Name : Ding Shen

Model Number : DS-HDT1W

Place of Origin : china

MOQ : 1set

Price : >=1 Sets $3700

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 5-10 working days

Certification : CE/FCC

Frequency : 300-900Mhz or other frequency customized

Consumption : <40W

Modulation : COFDM

Product name : 1 watt UAV Video transmitter

Contact Now

10km Long Range WIFI Wireless Transmitters Features

1. COFDM modulation, H.264 compression;
2. Support 1080P/720P resolution;
3. High performance,high capacity power of Li-battery(replaceable);
4. Small dimension,light weight,easy to carry ,heat dissipation of aluminum case;
5. Support NLOS,high-speed mobile transmission;
6. Highly integrated modular combination design;
7. Using high light and low power consumption of the OLED display control interface.

Adjustable Frequency RF Transmitter 10km Long Range Wifi Transmitter

Adjustable Frequency RF Transmitter 10km Long Range Wifi Transmitterf

As the 10km Long Range WIFI Wireless Transmitters is small, light weight which is perfect fit for size and weight sensitive application! Widely apply in UAV, Vessel,police,army, Vehicle to command centre and ect.. wireless video and data remote control.

Transmitter parameter:

Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	1 watt
Video input	HDMI
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	729832mm
Weight	190g without battery; 250g with battery
Box colour	Black
Antenna port	N type

20km LOS UAV Video Transmitter 300-900Mhz For Communication Tactical
