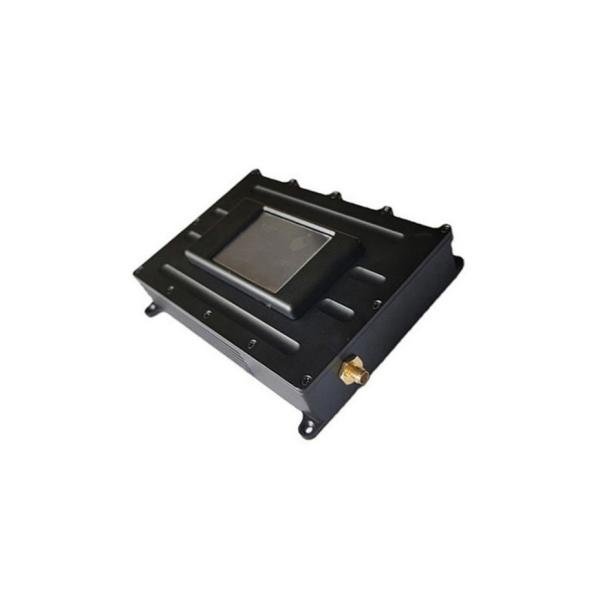

3W COFDM Fpv Transmitter And Receiver For Drone Video Link 60km LOS

  • 1
  • 2
  • 3

Brand Name : Ding Shen

Model Number : DS-HDT3W

Place of Origin : China

MOQ : 1set

Price : >=1 Sets $3700

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 5-10 working days

Certification : CE/FCC

Packaging Details : export standard packing

Modulation : COFDM

Frequency : 300-900Mhz or other frequency customized

Output power : 1-3W(adjustable),in 1dB step

Encryption : AES 128 bits

Product name : 30W Cofdm Wireless Audio Video Transmitter And Receiver

Video rate : 500kbps-16.68Mbps(autoadaptation)

Contact Now

3W Cofdm UAV Video Transmitter 60km LOS Drone Video Link

NLOS 5KM Shortwave Radio Wireless Receiver Transmitter BNC Connector UAV Control System in Other Home Audio & Video

Its advantages small size, light weight that can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

It's widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.

Transmitter parameter:

Power section
DC Input DC11V~DC16V
Working Current ≤1.1A DC12.5V

Transmitter section
Frequency range Output 250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1-3W(adjustable),in 1dB step
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
AV Interface HDMI/SDI(have to choose one)
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB

Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HDMI(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
KIIMPOK TECHNOLLOGY CO..,, LLIIMIITED D
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Versions HDMI 1.3
HDCP protocol Yes

Encoding support
AV rate 64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance 20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

Appearance characteristics
Dimension 167*90*25mm
Weight 515g

Features:

1. COFDM modulation, H.264 compression;
2. Support 1080P/720P resolution;
3. High performance,high capacity power of Li-battery(replaceable);
4. Small dimension,light weight,easy to carry ,heat dissipation of aluminum case;
5. Support NLOS,high-speed mobile transmission;

3W COFDM Fpv Transmitter And Receiver For Drone Video Link 60km LOS3W COFDM Fpv Transmitter And Receiver For Drone Video Link 60km LOS3W COFDM Fpv Transmitter And Receiver For Drone Video Link 60km LOS3W COFDM Fpv Transmitter And Receiver For Drone Video Link 60km LOS3W COFDM Fpv Transmitter And Receiver For Drone Video Link 60km LOS
