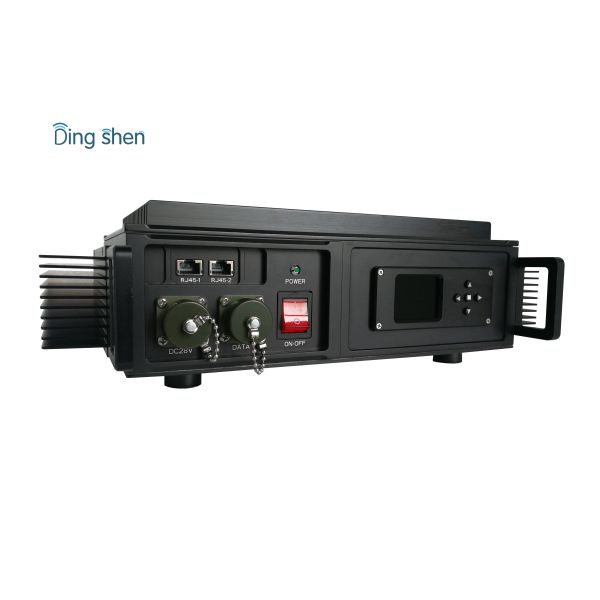

Dual Frequency Portable Radio Transmitter And Receiver , 20W NLOS Cofdm Hd Transmitter

Brand Name : Ding Shen

Model Number : DS-FDD20W

Place of Origin : Guangdong,china

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 325*250*120mm

Certification : CE/FCC

Model : DS-FDD20W

Working voltage : DC28V

Frequency2 : 300-2500MHz selection

Modulation : COFDM 2K

Dimension : 325*250*120mm

Technology : FDD (frequency-duplexing-division)

Frequency 1 : 300-2500MHz selection

Contact Now

Advantages

1. High quality image and high definition video transmission

2. Long range mobile transmission, max speed 450km/h;

3. Strong RF power( 25-45W ), up to 50km NLOS distance;

4. Broad-spectrum: in rescue, reconnaissance, field operations and other emergency communication system.

5. Multi-channel adjustment

Feature:

l COFDM modulation,different carrier frequencies technology

l great transfer rate for uplink and downlink

l transparent IP Ethernet interface and serial port in built

l Dual frequency is ideal for long-distance required

l Dynamic AES encryption 128bits

l Narrowband bandwidth 1M/2M/4M/8MHz available

l Work well in NLOS fast moving condition

l Integrated design, super linear

l User easy to operate the related parameters by LCD panel with keypad

Tech specification:

Model	SG-FDD30
Technology	FDD (frequency-duplexing-division)
Working voltage	DC 28V
Frequency 1	300-2500MHz selection
Frequency 2	300-2500MHz selection
RF bandwidth	1/2/4/8MHz
Output power	20W
Encryption/decryption mode	AES128 bits
Modulation	COFDM 2K
Transfer rate	30 Mbit/s each for uplink and downlink
RF connector	N *2
Ethernet	Standard RJ45 port *2
Serial port	RS232 serial port, 115200bps max
LCD panel with keypad	Easy to set/modify the related parameters
Dimension	325250120mm
Weight	8.7kg

Dual Frequency Portable Radio Transmitter And Receiver , 20W NLOS Cofdm Hd Transmitter
